Kerbway Inlet Capture
Kerbway Inlet Capture   (DOWNLOAD MS EXCEL FILE  IN  0.3MB ZIP)
Description

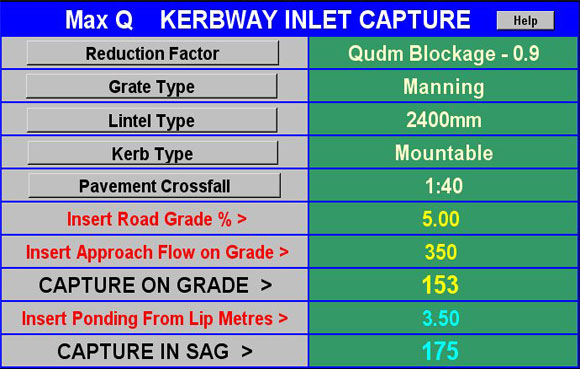

Capture for Kerbway inlets is built into most system design programs.  This interactive program permits designers to check capture at individual inlets for selected blockage factor, grate type, lintel length, type of kerb and pavement crossfall followed by input of the road grade and approach flow. The program then displays the inlet capture for those conditions.

For input of an allowable width of ponding, measured from the channel lip, the program displays the inlet capture in sag.

Centre of road and field inlet captures are also catered for.
