Centre of Road Drawings
Centre of Road Drawings    (DOWNLOAD DWG FILE IN  0.2MB ZIP)

The drawings included in the design manual as a pdf files may be down loaded here as AutoCAD.dwg files.
Provided the drawing is used for specification of Max Q inlets it may be used as is, amended to suit the user’s requirements, or for cut and paste into project drawings.

The drawings  forwarded in the zip are:

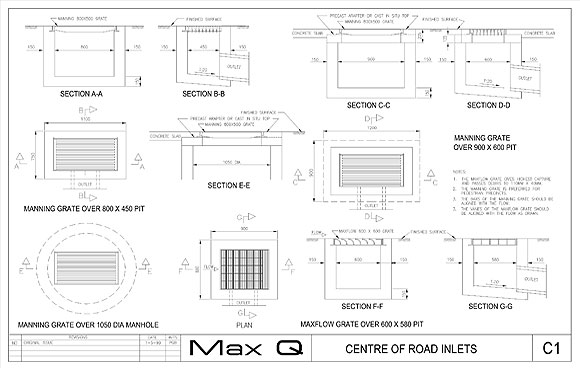

Dwg C1 Manning & Maxflow grates
Dwg C2 Manning and Mannflow grates
